Control panel design engineer job simulation
A control panel design engineer job simulation is practice at taking a specification to a build-ready panel. For a simulated packaging machine you complete the cable schedule, check the general arrangement drawing and parts list, calculate heat, handle a client's drive swap and read the routine test results. An EDWartens Lab panel exercise supports the wiring work. It is practice, not paid employment or standards certification.
You join Calderfield Panel Systems Ltd (simulated company), a control panel design and build in Wolverhampton. Days 1 to 5 are free, with about 10 h 15 min of tickets. Premium continues to day 20. It is practice, not employment.
Days 1 to 5 are free. You need a free account and no card. Create an account.
- Free days
- 1 to 5
- Free tickets
- about 10 h 15 min
- Project documents
- 8
- Certificate, optional
- £14.99
The project
You join Calderfield Panel Systems Ltd (simulated company)
Calderfield Panel Systems Ltd (simulated company) is a control panel design and build in Wolverhampton. You help its team deliver a project for Ternworth Packaging Machinery Ltd, at Machine control panel PNL-1042 for the CP-300 case packer.
You are the junior design engineer on one machine control panel. In four weeks you size the cables, check the GA drawing and the parts list, work out the heat in the enclosure, and meet a motor that does not match the drawing. The client then swaps the drive after procurement and you control the change: heat, space, wiring, protection and documents. A contactor has a 20 week lead time, the factory test finds an insulation failure on the day before shipping, and sales wants to ship anyway. You review the routine test certificate, walk the panel against the machine wiring standard and hand over a design pack. The skill is to keep every number and revision honest.
What you will do
- Size cables and breakers, choose wire colours and check a GA drawing and a parts list
- Work out the heat in an enclosure by the IEC TR 60890 method and choose a fan-filter
- Control a client's drive swap: heat, space, wiring, protection and revised documents
- Read routine test results, refuse to ship a failed test and review a test certificate
- Walk a machine panel against IEC 60204-1 and hand over a design pack
The people you deal with
- Lead Panel Design Engineercompany
- Panel Shop Managercompany
- Workshop Supervisorcompany
- Quality Inspectorcompany
- Client Project Engineerclient
- Client Purchasing Managerclient
- Component Supplier Salesvendor
The company, client and site are fictional. The people are fictional too.
Look inside
What the simulator looks like
The workplace, your tickets, the documents and the team chat, as a learner sees them.

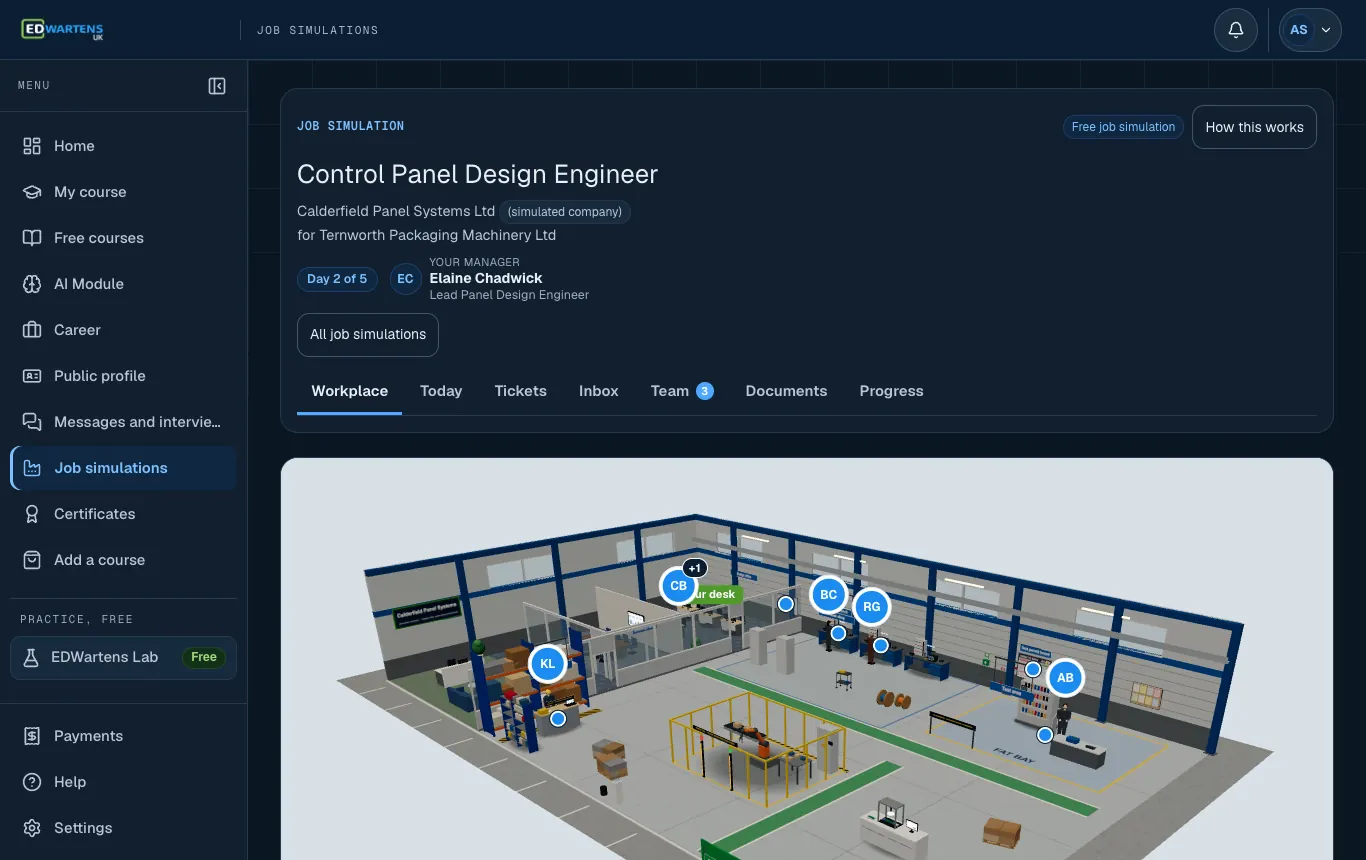

Start in the workplace, with the team around you.

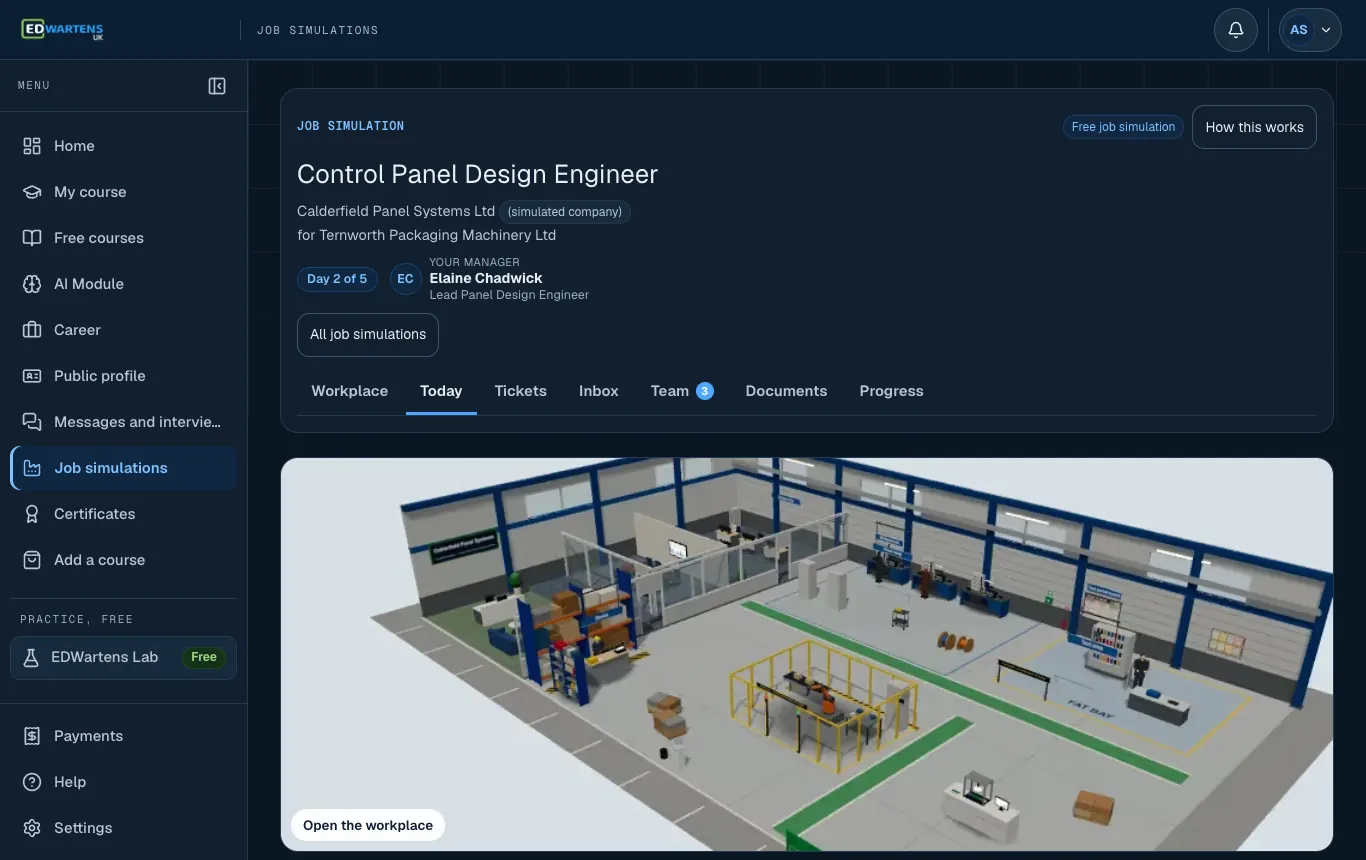

Today: the morning email and your tickets for the day.

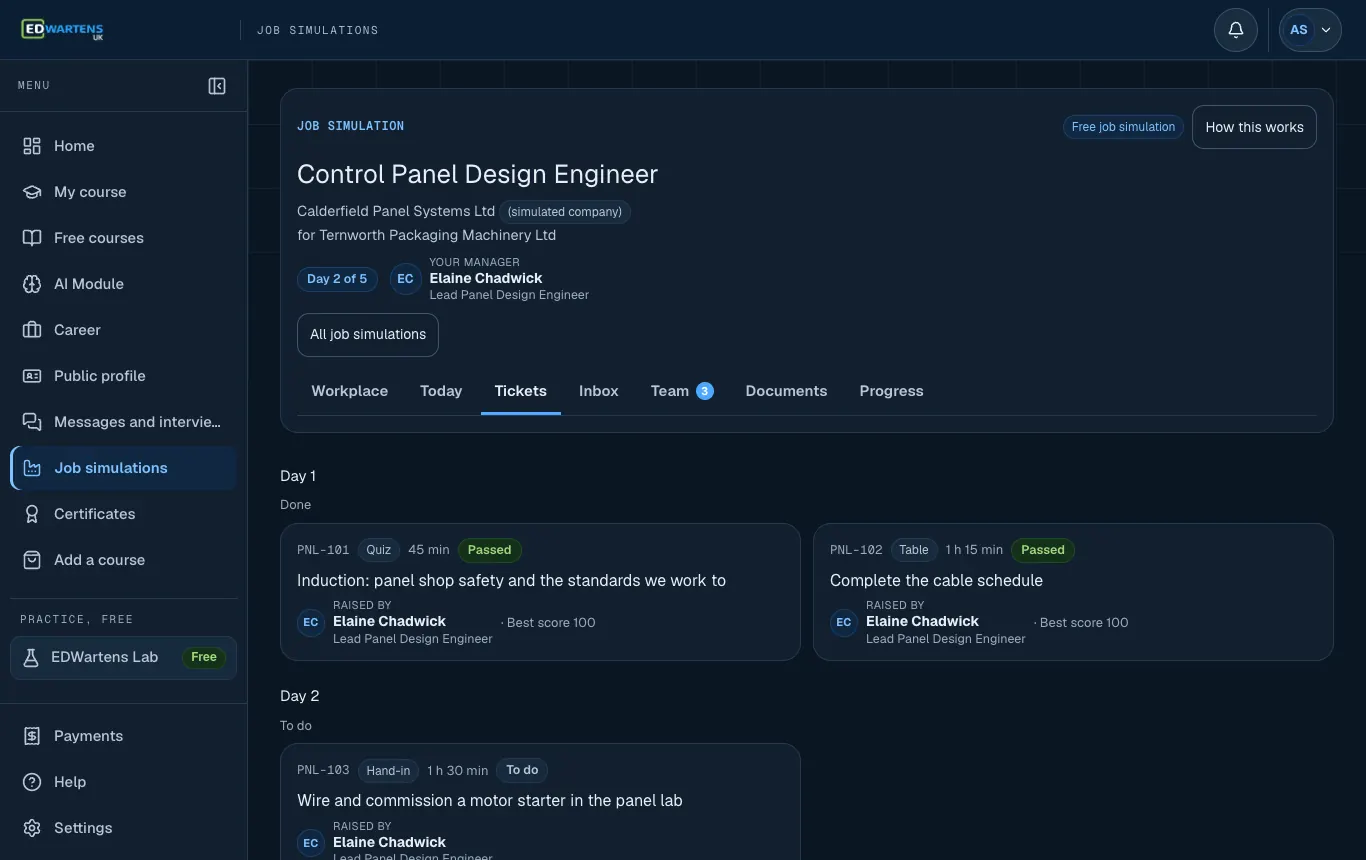

Work: every ticket, by day, with its status.

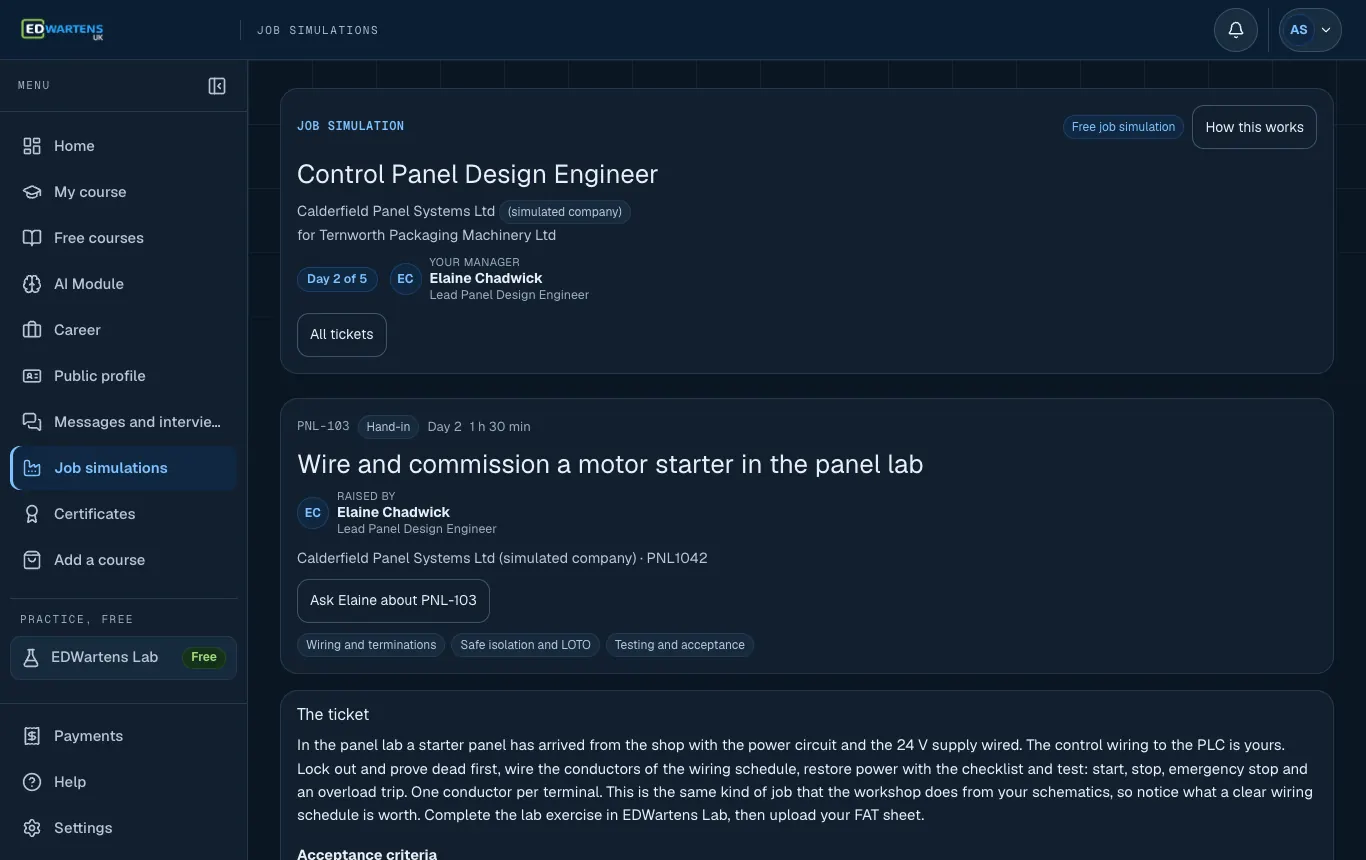

A ticket, written the way a colleague would write it.

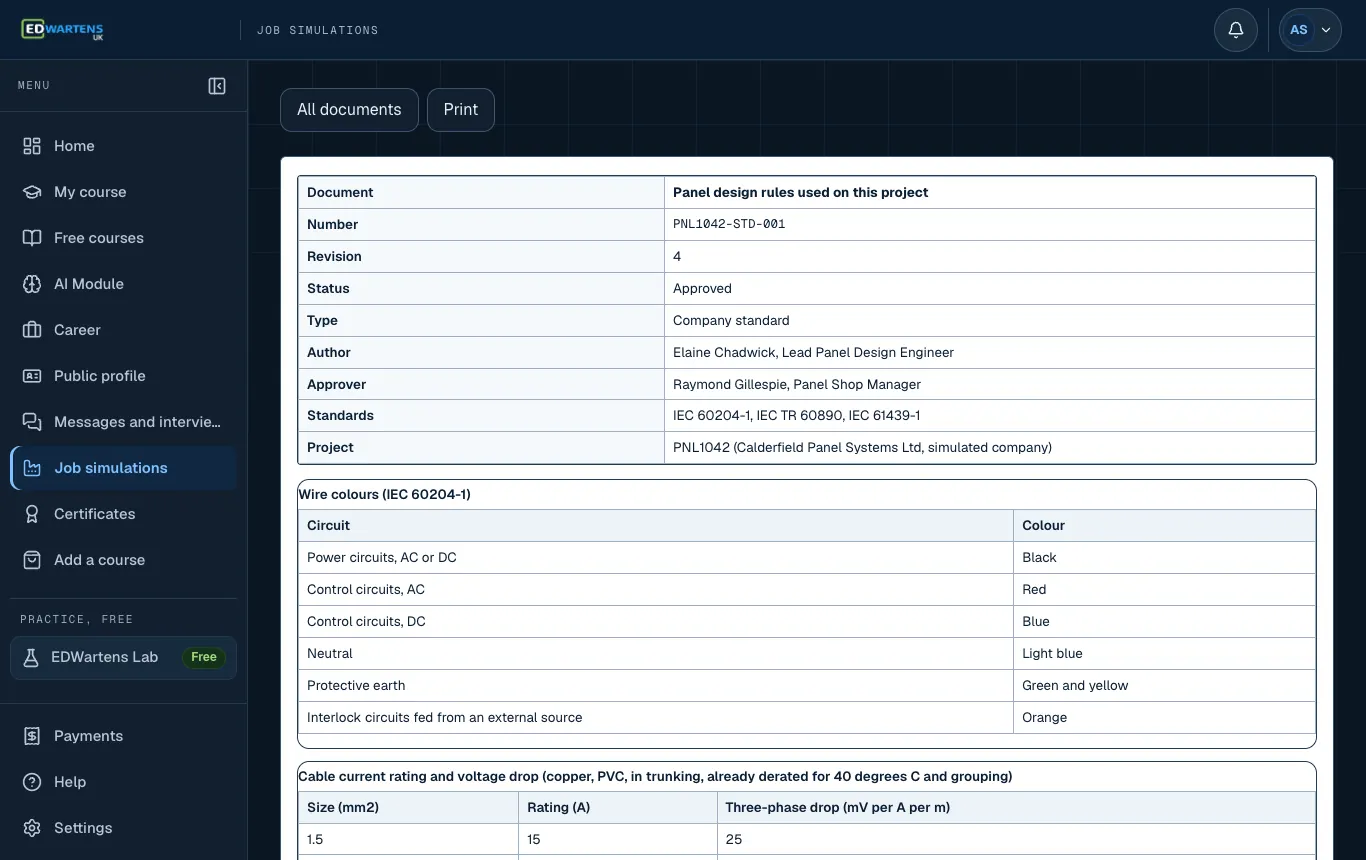

A project document with its number, revision and status.

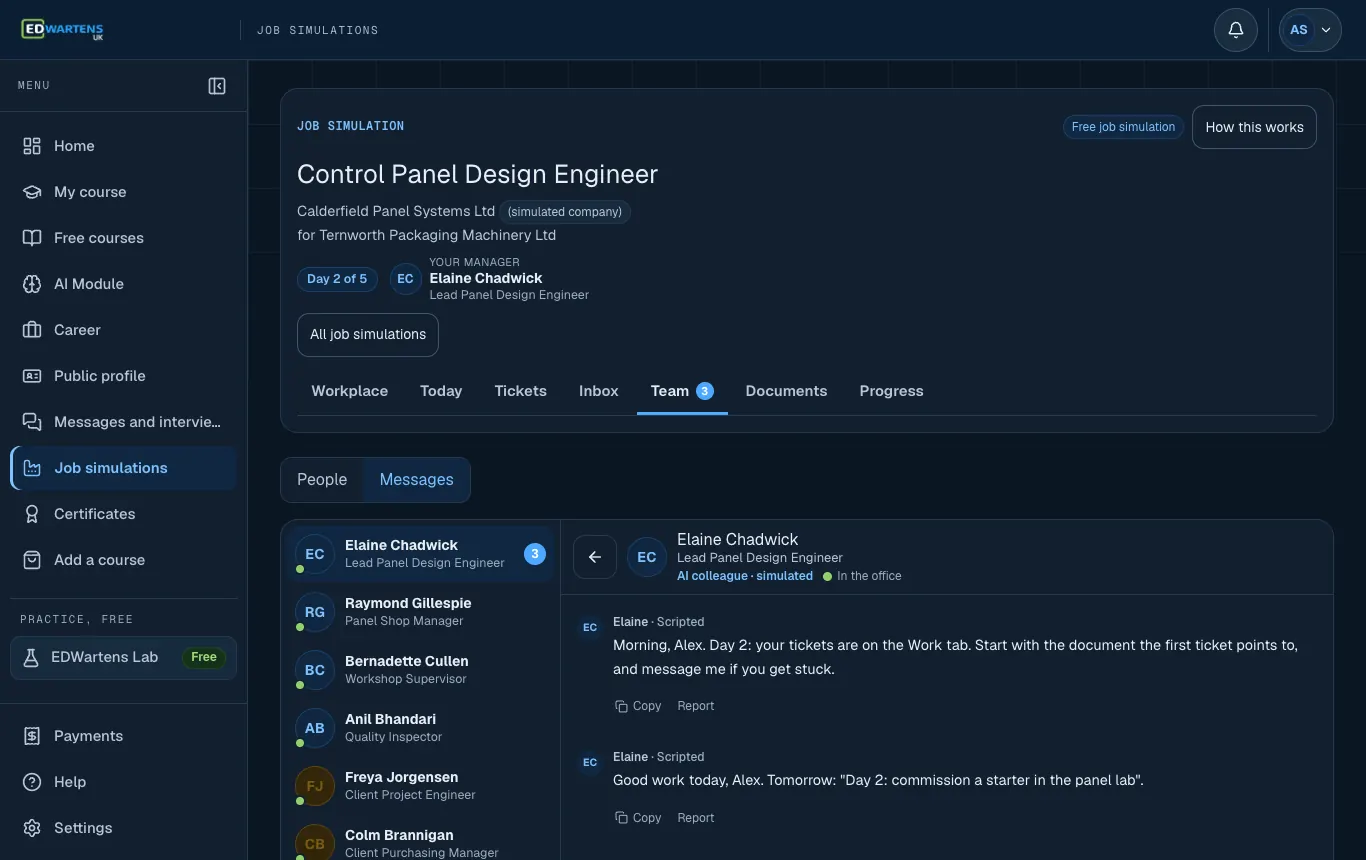

Ask a colleague. They are AI colleagues: they help you think, they do not hand out answers.
