Electrical design engineer job simulation
An electrical design engineer job simulation is practice at the core design chain. You build a load list, work out maximum demand, size cables for current rating and voltage drop, check fault levels and discrimination, and rework every affected document when a late 75 kW pump arrives. You keep the calculations as proof of method. It is practice, not paid employment.
You join Halvern Power Design Ltd (simulated company), a electrical design consultancy in Leeds. Days 1 to 5 are free, with about 8 h 40 min of tickets. Premium continues to day 20. It is practice, not employment.
Days 1 to 5 are free. You need a free account and no card. Create an account.
- Free days
- 1 to 5
- Free tickets
- about 8 h 40 min
- Project documents
- 7
- Certificate, optional
- £14.99
The project
You join Halvern Power Design Ltd (simulated company)
Halvern Power Design Ltd (simulated company) is a electrical design consultancy in Leeds. You help its team deliver a project for Wendmoor Creamery Ltd, at Utilities Block U-3, Wendmoor Creamery.
Wendmoor Creamery is building a new utilities block and has asked Halvern Power Design to design the electrical supply, protection and cabling. You join the design team in week one with a half-finished load list. By the end of week one you have checked the loads, sized the cables and reviewed a drawing. Later, a 75 kW pump arrives late and moves the transformer, the boards, the fault levels and the cables. You carry the change through every document, face a contractor pressing you to energise early, and hand over the pack.
What you will do
- Build a load list and work out maximum demand and transformer loading
- Size cables for current rating and voltage drop, and review a cable schedule
- Check fault levels, discrimination and earth fault loop impedance
- Handle a late client change through every affected document
- Hand over a design pack that someone else can build from
The people you deal with
- Lead Electrical Engineercompany
- Design Checkercompany
- Document Controllercompany
- Mechanical Design Leadcompany
- Client Project Managerclient
- Client Operations Engineerclient
- Contractor Site Engineervendor
- Pump Vendor Supportvendor
The company, client and site are fictional. The people are fictional too.
Look inside
What the simulator looks like
The workplace, your tickets, the documents and the team chat, as a learner sees them.

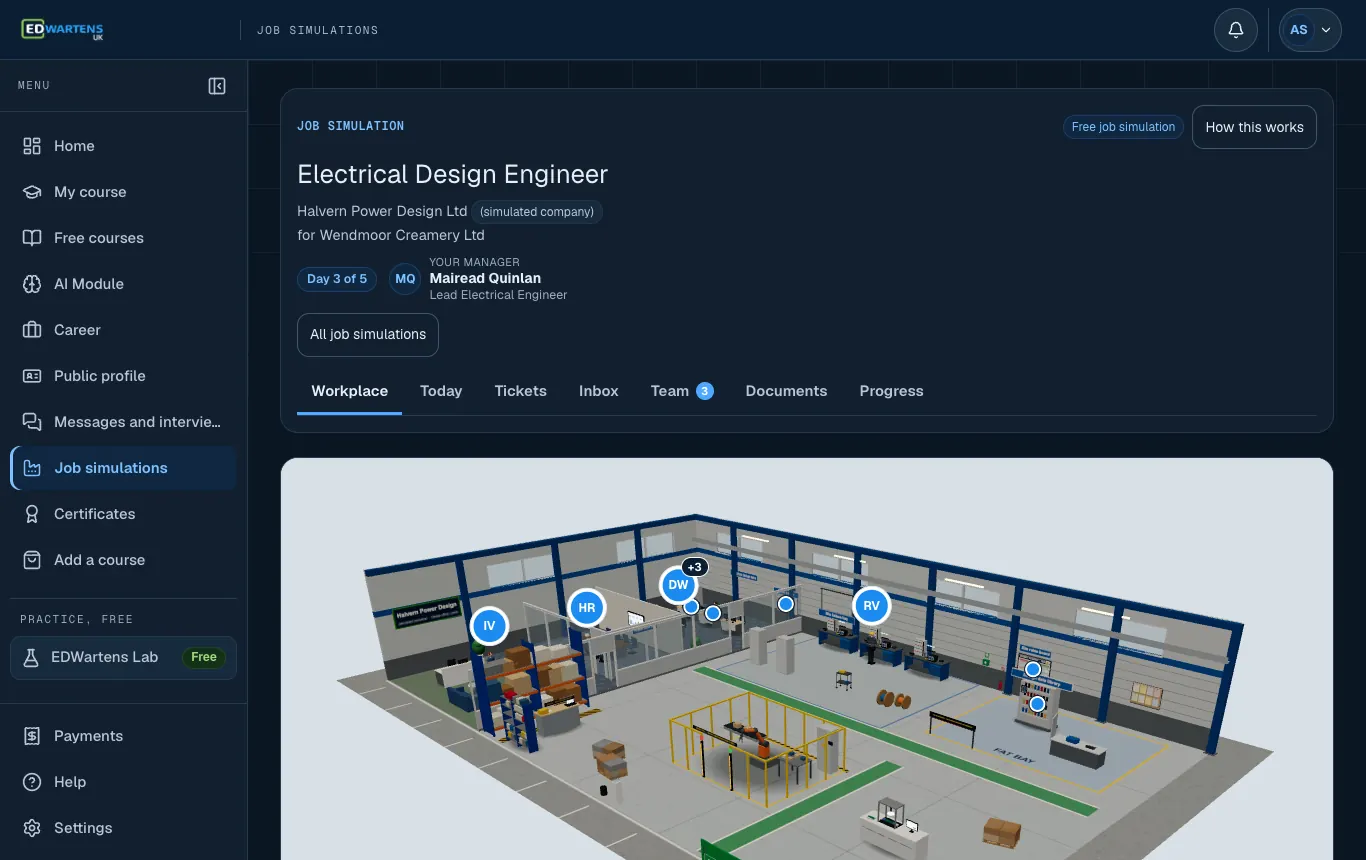

Start in the workplace, with the team around you.

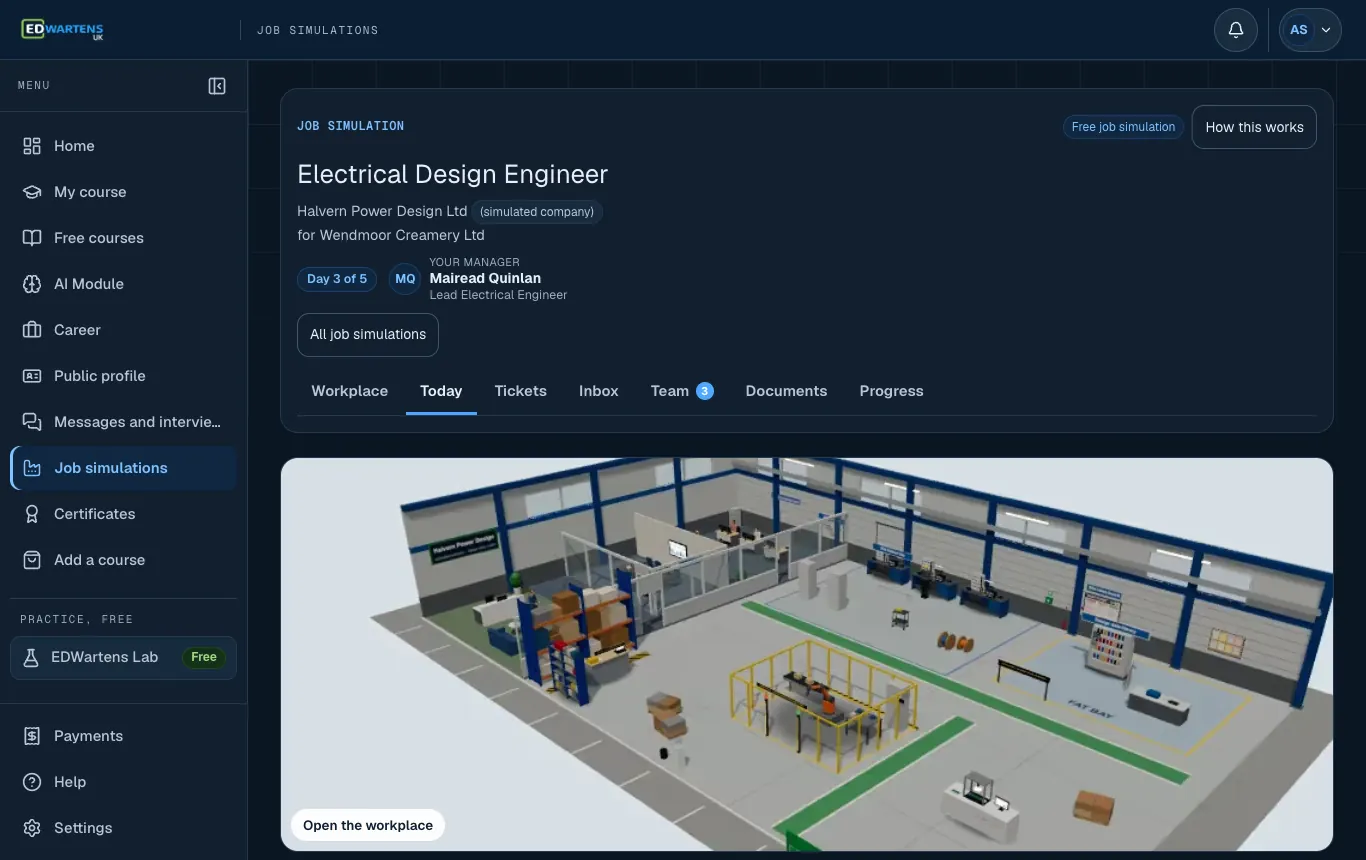

Today: the morning email and your tickets for the day.

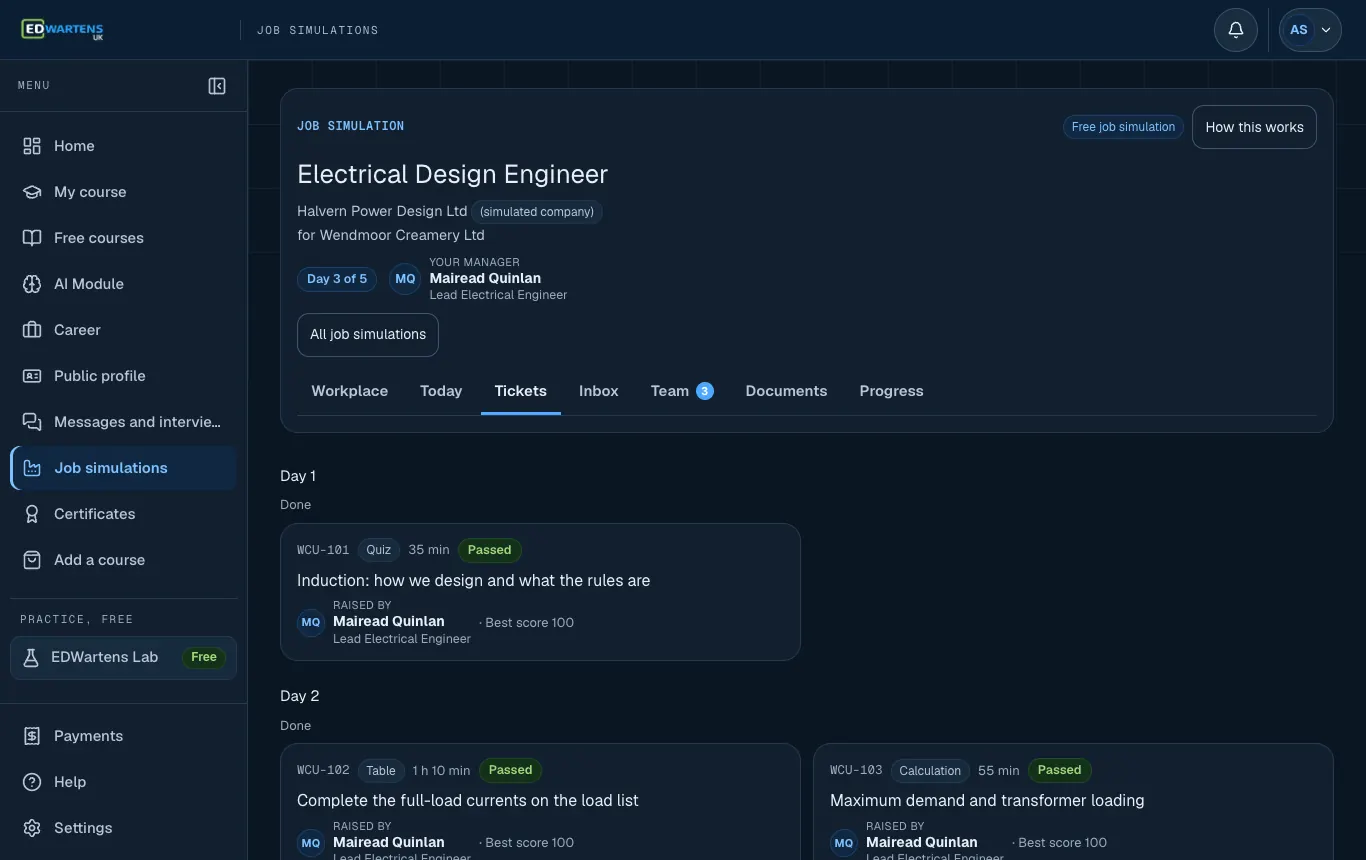

Work: every ticket, by day, with its status.

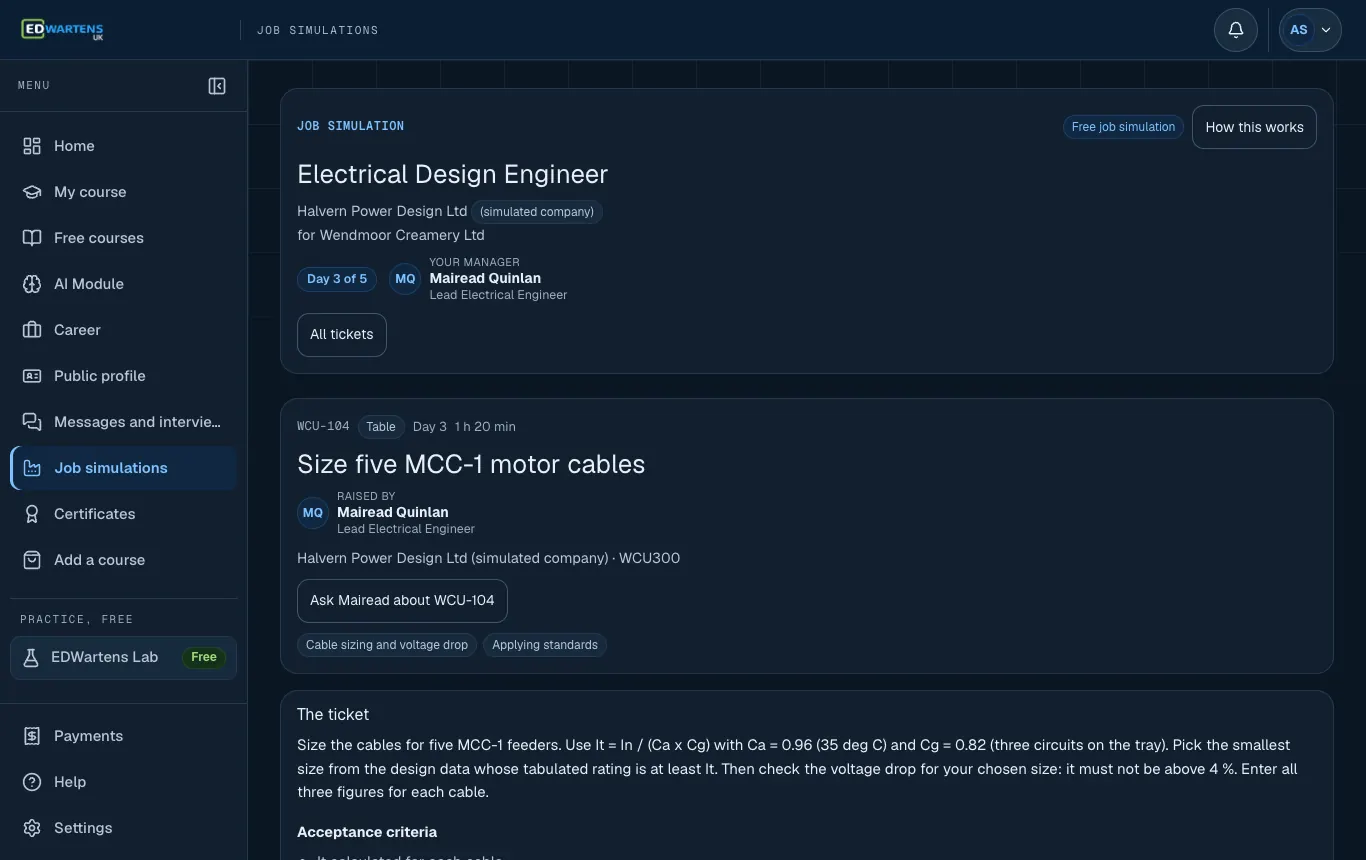

A ticket, written the way a colleague would write it.

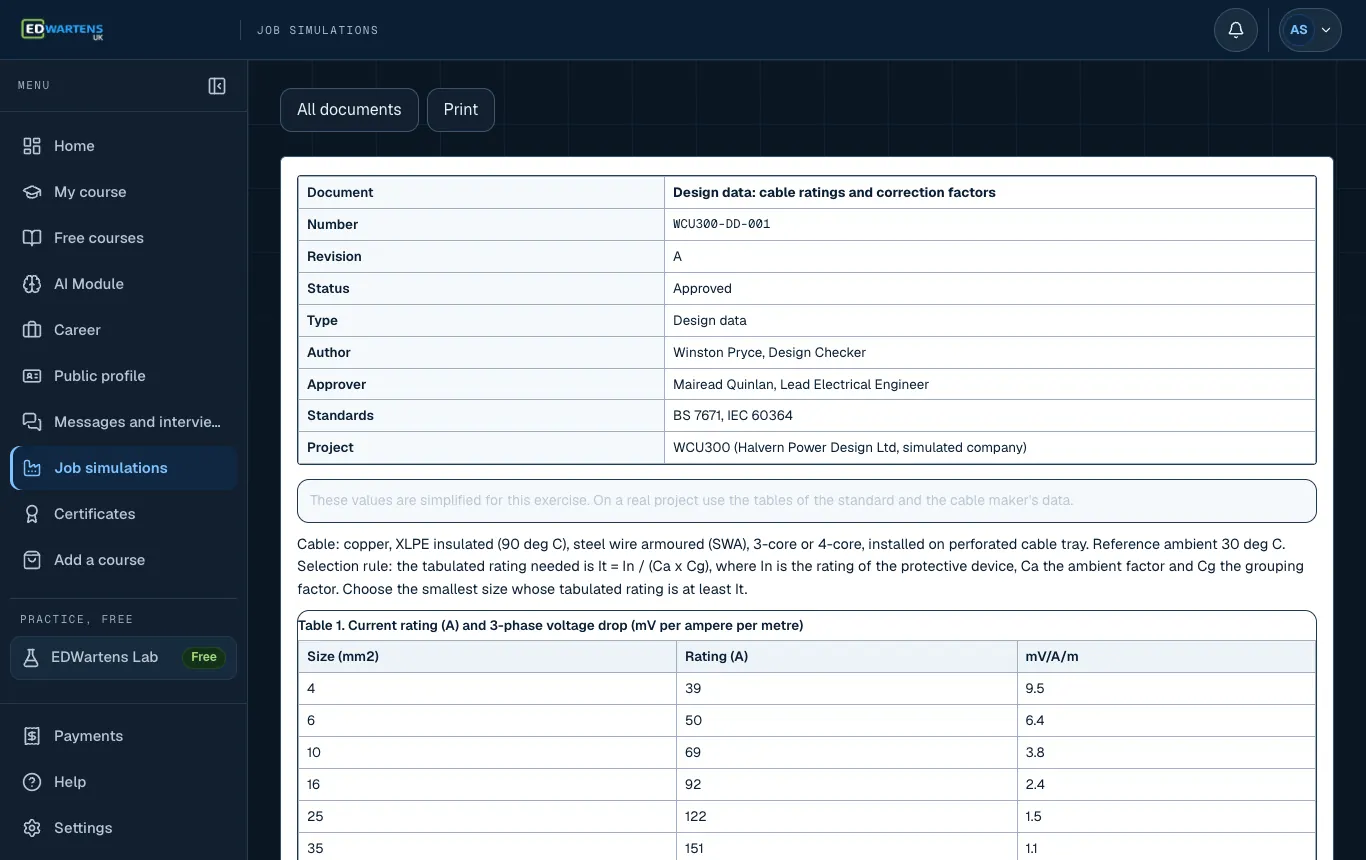

A project document with its number, revision and status.

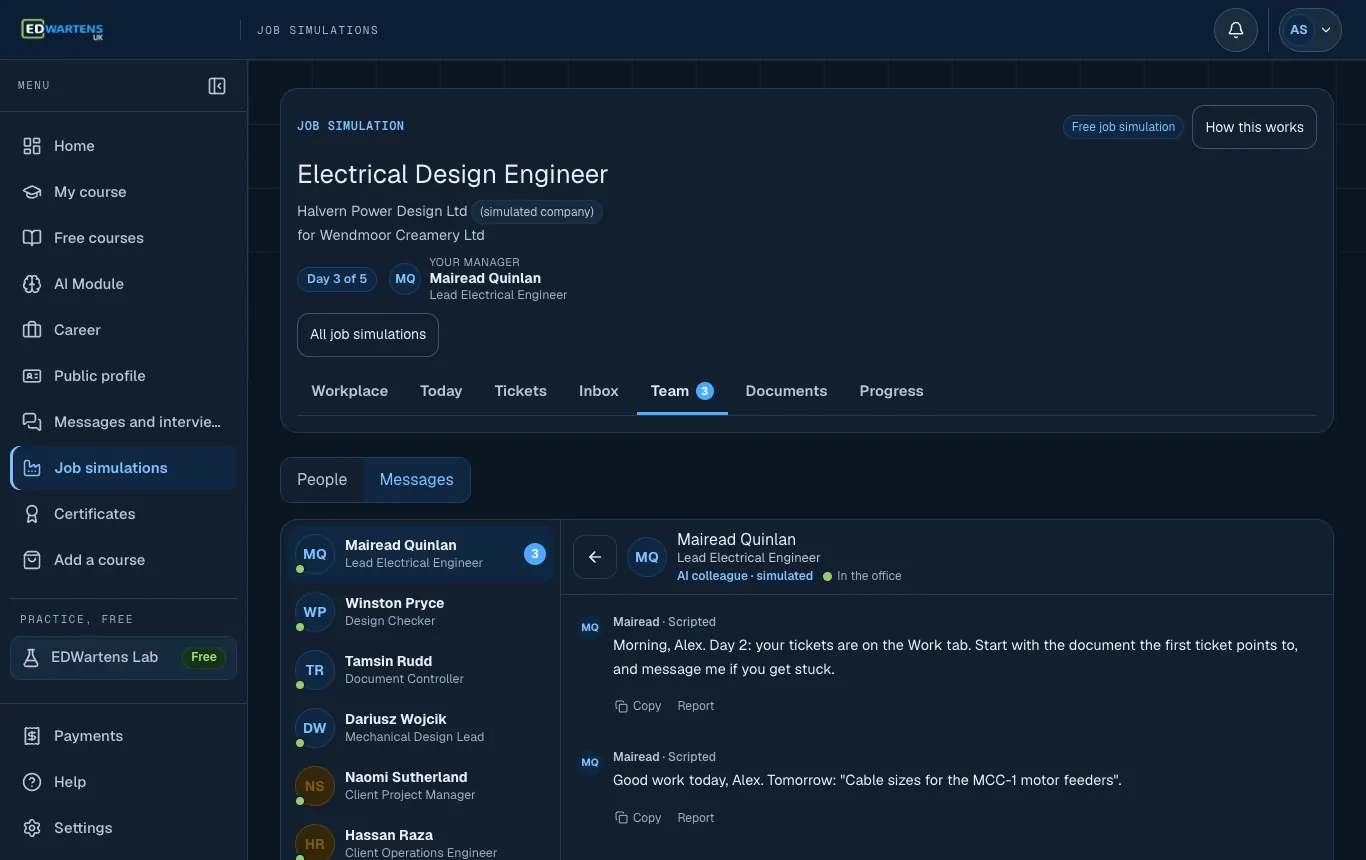

Ask a colleague. They are AI colleagues: they help you think, they do not hand out answers.
