Pro-face HMI with GP-Pro EX

The Schneider/Pro-face HMI on Japanese and European machines worldwide: GP-Pro EX from first project to parts, keypads and animation, PLC drivers and Allen-Bradley data, ladder logic inside the HMI, alarms and data sampling, security and languages, transfer, web server and remote tools.

See the modules

Free to learn. Verifiable certificate £19 when you pass the final exam (optional, VAT included).

Level
Beginner
Modules
10
Video
13 hours
Price
Free

Outcome

What you will be able to do

Build GP-Pro EX projects with screens, parts, switches, lamps and keypads, animate and control visibility, map PLC addresses and use multiple drivers, program ladder logic and timers inside the HMI, configure alarms, history and data sampling, set security and multi-language, and transfer, view remotely and manage projects with the tools.

  • Start GP-Pro EX projects for GP4000 and SP5000 panels
  • Build screens with parts, switches, lamps, keypads and animation
  • Map PLC addresses, use multiple drivers and Allen-Bradley tags
  • Program ladder logic, function blocks, timers and retain circuits inside the HMI
  • Configure alarms, pop-ups, history and data sampling with CSV export
  • Set security levels, operator safety and multi-language text
  • Transfer projects, use WinGP, the web server, GP-Viewer EX and Remote HMI

Software

GP-Pro EX (10-day trial) with built-in simulation

Hardware

None required.

Syllabus

10 modules

Each module has video lessons, notes and a short quiz. The final exam closes the course.

  1. 1Pro-face, GP-Pro EX and the Hardware5 lessons
  2. 2Basic Training: Screens, I/O, Switches and Lamps5 lessonsLab
  3. 3Parts, Screens and Productivity Tools5 lessonsLab
  4. 4Switches, Keypads and Animation5 lessonsLab
  5. 5PLC Communication and Drivers2 lessonsLab
  6. 6Logic Programming Inside the HMI6 lessonsLab
  7. 7Alarms and Data Sampling8 lessonsLab
  8. 8Security, Safety and Languages4 lessons
  9. 9Transfer, Web Server, Remote and Tools8 lessons
  10. 10Final Assessment1 lesson

How it works

How this course works

  1. Watch the video lessonsOne module at a time, at your own pace.
  2. Take the module quizA short quiz at the end of each module shows what stuck.
  3. Keep your notesWrite in My notes beside each module and ask the trainer if you are stuck.
  4. Practise in the labOptionalTry a task from the module in the EDWartens Lab, in your browser.
  5. Sit the final examPass it once you have been through the modules.
  6. Certificate, if you want oneOptionalPaid, and only after you pass. Anyone can check it online.

EDWartens Lab

Practise this in the EDWartens Lab

Practise the screen and alarm design you build in GP-Pro EX: bind tags to an operator screen, use alarm colours properly and set alarm limits that do not flood the operator.

Works alongside Pro-face HMI with GP-Pro EX. The Lab is process control practice in your browser: no install, no hardware, free to use. Sign in as a learner and it opens with your account.

Open the free lab See the Lab
Process control: Tune a real process loop.

Levels to try with this course

Optional. Skip it whenever you like: it never blocks your progress or your certificate.

Why practise in a lab

Technical work is judged on what you can do: wiring, commissioning, finding a fault. Doing a task yourself teaches more than watching it a second time, and a lab lets you try it safely before you meet real equipment. It does not replace working on real hardware.

  • Practise safely, so a mistake costs nothing.
  • The lab checks your work like a site test, so you know when it is right.
  • Free, in your browser, with nothing to install.

Certificate

An optional certificate when you pass

Learning is free. Pass the final exam and you can have a certificate for £19, including VAT, with a number employers can check online. It records that you completed a free online course; it is not a regulated qualification or a CPD certificate.

  • Your name, the course, its study time and your final exam score
  • A unique certificate number and a QR code to its verification page
  • Issued by Wartens Ltd; add it to your LinkedIn profile in one click
  • Pay now or after you pass: it is issued the moment you pass the final

How the certificate works

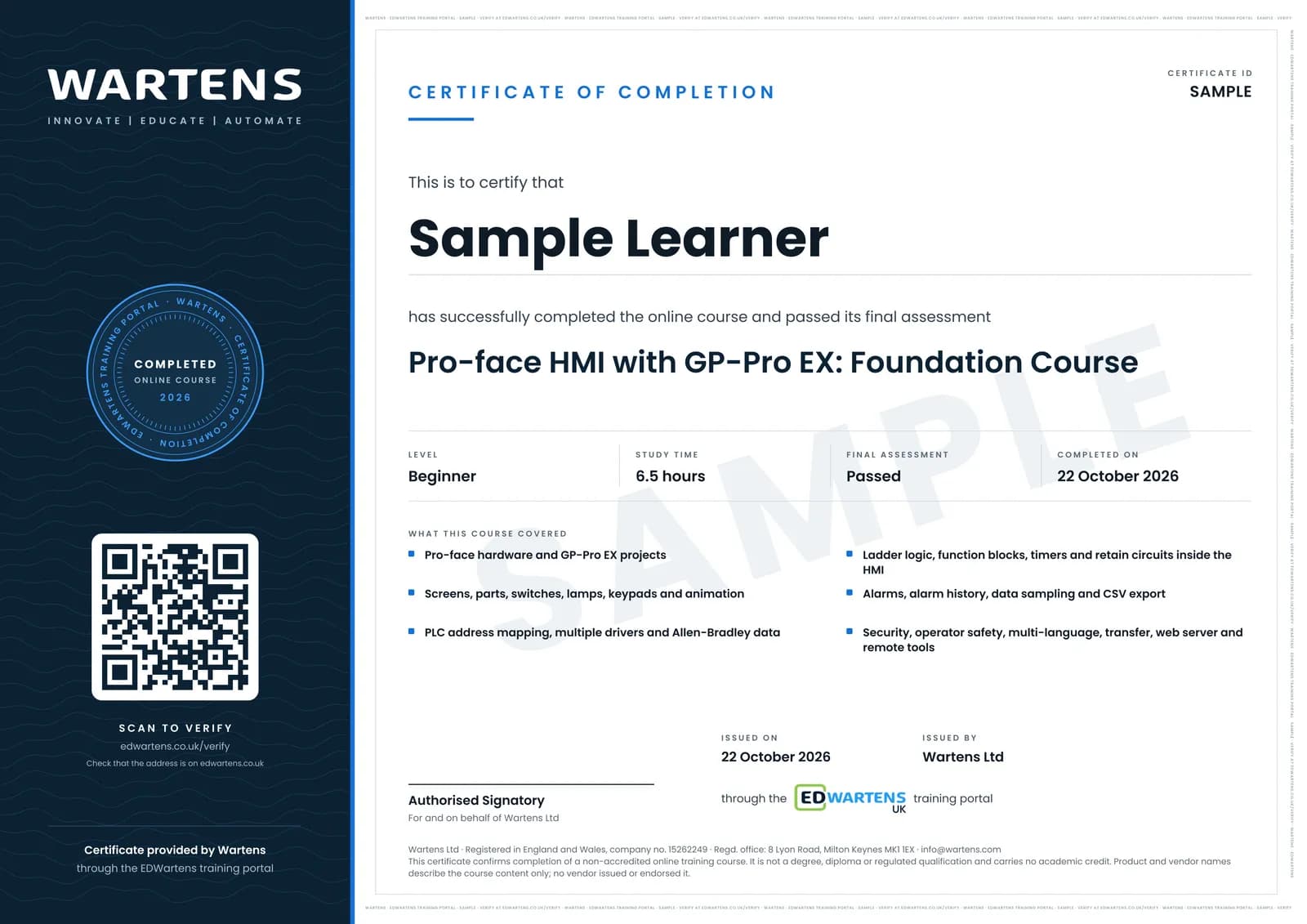

Sample certificate for Pro-face HMI with GP-Pro EX
