IEC 61850 Substation Automation: GOOSE, SCL and IEC 60870-5

The utility side of SCADA, taught the way a substation automation engineer meets it: the IEC 61850 object model and its logical nodes, SCL files from ICD through SCD to CID, MMS reporting against GOOSE against Sampled Values, the engineering process a system configuration tool follows, testing from office simulation through factory and site acceptance to maintenance isolation, and the IEC 60870-5-101 and 104 link that carries the substation to the control centre.

See the modules

Free to learn. Verifiable certificate £19 when you pass the final exam (optional, VAT included).

Level
Advanced
Modules
8
Video
7 hours
Price
Free

Outcome

What you will be able to do

Read an IEC 61850 object reference and say what every part of it means, navigate an SCL file and tell ICD, SSD, SCD and CID apart, decide whether a signal belongs on MMS reporting, GOOSE or Sampled Values, follow the engineering process from vendor capability files to a substation configuration and back to the relays, plan the tests a substation automation system needs at each stage of its life, isolate a bay with test mode instead of a lifted link, and map a substation into IEC 60870-5-101 or 104 for the control-centre link.

  • Read any IEC 61850 object reference down to the data attribute and name the logical node behind it
  • Tell ICD, SSD, SCD and CID apart and say who produces each and when
  • Decide whether a signal belongs on MMS reporting, GOOSE or Sampled Values
  • Engineer and then trace a GOOSE subscription, including the case where it never arrives
  • Isolate a bay with test mode and the simulation flag instead of lifting a trip link
  • Write the point list and message sequence for an IEC 60870-5-104 link to the control centre

Software

None required. A text editor to read SCL files. The IEC 61850 simulation and test tools demonstrated in the videos are the publisher's own and are optional.

Hardware

None. An IED on the bench helps but nothing here needs one.

Syllabus

8 modules

Each module has video lessons, notes and a short quiz. The final exam closes the course.

  1. 1The IEC 61850 object model and SCL2 lessons
  2. 2Communications: MMS reporting, GOOSE and Sampled Values1 lesson
  3. 3The engineering process: from ICD to SCD and back1 lesson
  4. 4Testing a 61850 system: factory, site and in service1 lesson
  5. 5Simulating and testing your SCD design1 lesson
  6. 6IEC 60870-5: the link to the control centre2 lessons
  7. 7IEC 60870-5 in service: application layer, stack and security3 lessons
  8. 8Final assessment0 lessons

How it works

How this course works

  1. Watch the video lessonsOne module at a time, at your own pace.
  2. Take the module quizA short quiz at the end of each module shows what stuck.
  3. Keep your notesWrite in My notes beside each module and ask the trainer if you are stuck.
  4. Sit the final examPass it once you have been through the modules.
  5. Certificate, if you want oneOptionalPaid, and only after you pass. Anyone can check it online.

EDWartens Lab

Practise this in the EDWartens Lab

Read the single line diagram, then isolate, lock and tag a motor bucket in the Lab's substation and MCC room.

Works alongside IEC 61850 Substation Automation: GOOSE, SCL and IEC 60870-5. The Lab is substation and mcc practice in your browser: no install, no hardware, free to use. Sign in as a learner and it opens with your account.

Open the free lab See the Lab
Substation and MCC: Work a real switchroom.

Certificate

An optional certificate when you pass

Learning is free. Pass the final exam and you can have a certificate for £19, including VAT, with a number employers can check online. It records that you completed a free online course; it is not a regulated qualification or a CPD certificate.

  • Your name, the course, its study time and your final exam score
  • A unique certificate number and a QR code to its verification page
  • Issued by Wartens Ltd; add it to your LinkedIn profile in one click
  • Pay now or after you pass: it is issued the moment you pass the final

How the certificate works

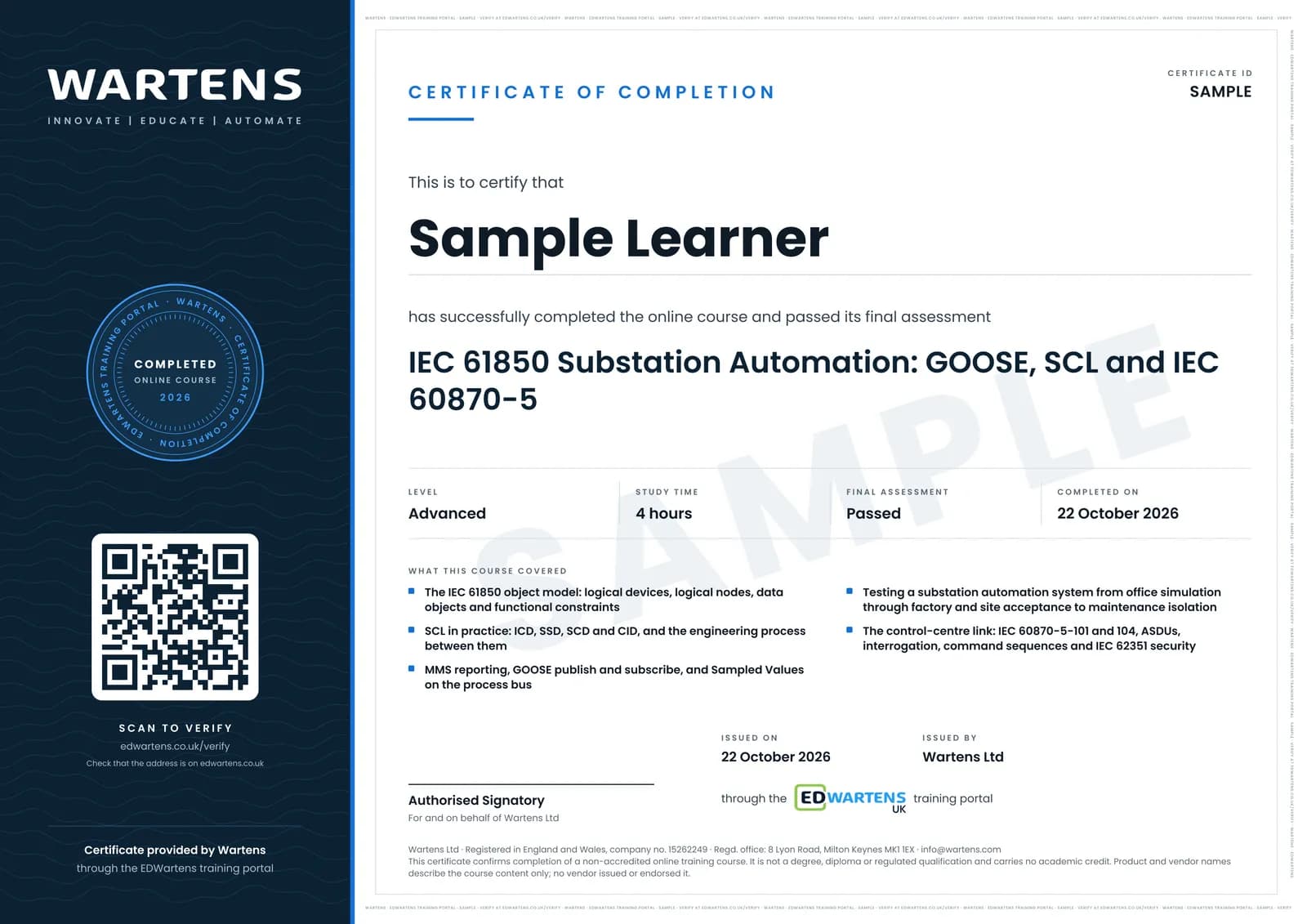

Sample certificate for IEC 61850 Substation Automation: GOOSE, SCL and IEC 60870-5
